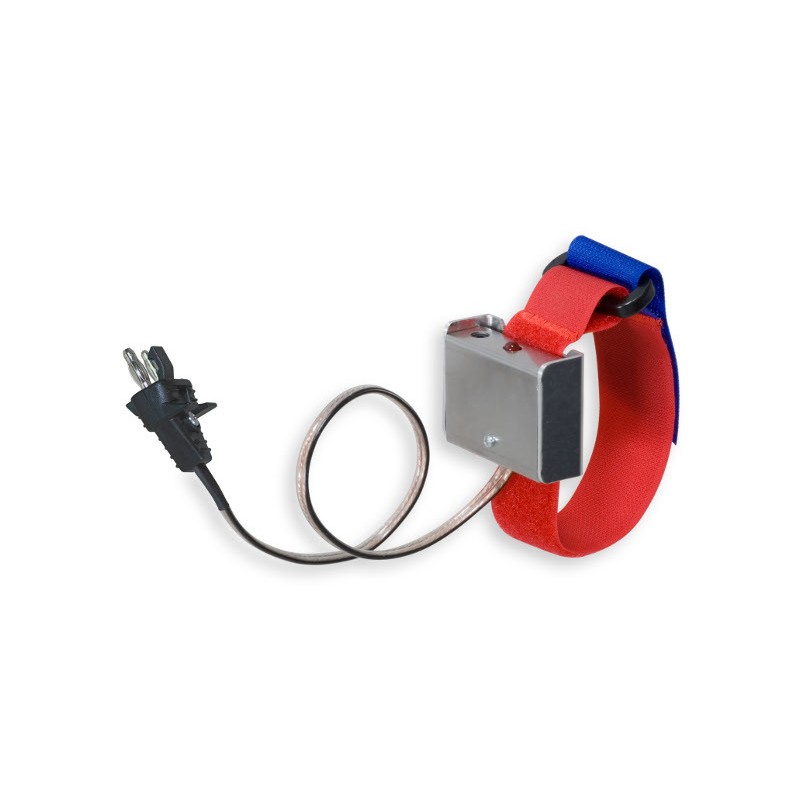

MINI-04 Miniaturized wrist device for foil FAVERO

Main features:

– Low cost.

– Extremely small dimensions: 4 x 5 x 2 cm. Weight: 69 g.

– Both acoustic (buzzer) and visual (led) point contact signalling. The signal stays on for approx. 1 sec.

– Sturdy metal container.

– 12 V battery included (common radio control battery, type A23 or VR22). Battery life is approx. 5,000 points!!.

– Contact time of the point complies with

F.I.E. rules.

When the MINI-04 is not in use, it should be disconnected from the foil, and care should be paid that the 2 poles of the connector do not enter in contact through conductive surfaces. This would cause the battery to go flat in approximately 2 months.
